Product Type:

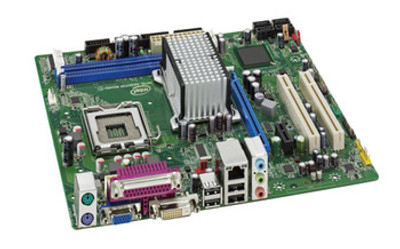

System Board
Form Factor:
Micro ATX
CPU Socket Type:
LGA775
Supported CPU(s):
Intel Celeron ProcessorIntel Core2 Duo Desktop ProcessorIntel Core2 Quad ProcessorIntel Pentium Dual-Core Processor
FSB Speed (Maximum):
1333 MHz
Supported CPU Technologies:
Dual CoreEnhanced Intel Speedstep TechnologyExecute Disable BitHyper-Threading TechnologyIdle StatesIntel 64 ArchitectureQuad CoreThermal Monitoring Technologies
Chipset:
Intel G33 Express
South Bridge Chipset:
Intel ICH9DH
Number of Memory Slot(s):
4
Supported Memory Standard(s):
PC2-5300 (DDR2-667)PC2-6400 (DDR2-800)
Maximum Installed Memory:
8 GB
Expansion Slots:
PCIPCI Express x1PCI Express x16
Storage Controller:
(ATA-7) Ultra ATA/133Floppy ConnectorSerial-ATA 3.0 Gbps
On-Board Video Controller:
Intel Graphics Media Accelerator 3100
Shared Video Memory:
256 MB
Audio Controller:
Realtek ALC888
Network:
Gigabit Ethernet
Connectors/Ports:
Audio-InAudio-OutFireWire (IEEE 1394)MicrophonePS/2RJ-45 (Ethernet)USB 2.0Video-Out
Features:
Memory:Dual Channel ArchitectureBIOS:ACPI supportSMBIOS supportSleep / Wake Up:Mouse Wake UpWake on USB PortKeyboard Wake UpWake on PCI DeviceSuspend to RAM (STR)Hardware:System VoltageCPU Fan TachometerChassis TemperatureCPU Core TemperatureChassis
